Lead Carbon Battery

Lead Carbon Battery

Power Supply Battery

Key Features of Our Lead Carbon Battery

  • The lead carbon battery is a type of super battery that combines lead acid batteries and supercapacitors. The carbon material is added to the negative plate of the lead acid battery, which can significantly improve the charge acceptance performance of the battery at low state-of-charge (PSOC) and prevent sulphation of the negative plate.
  • High charging efficiency, maximum charge current is 0.2C.
  • High depth of discharge (DOD), design cycle life: more than 1000 cycles at 80% DOD.
  • Long standby life: more than 15 years.

APPLICATION

  • Wind and solar energy storage
  • Microgrid energy storage
  • Base station backup power
  • UPS
ModelVoltage (V)Capacity (Ah)Hour Rate (HR)Dimensions±2 (mm)Weight±3% (KG)TerminalPolarityDatasheet

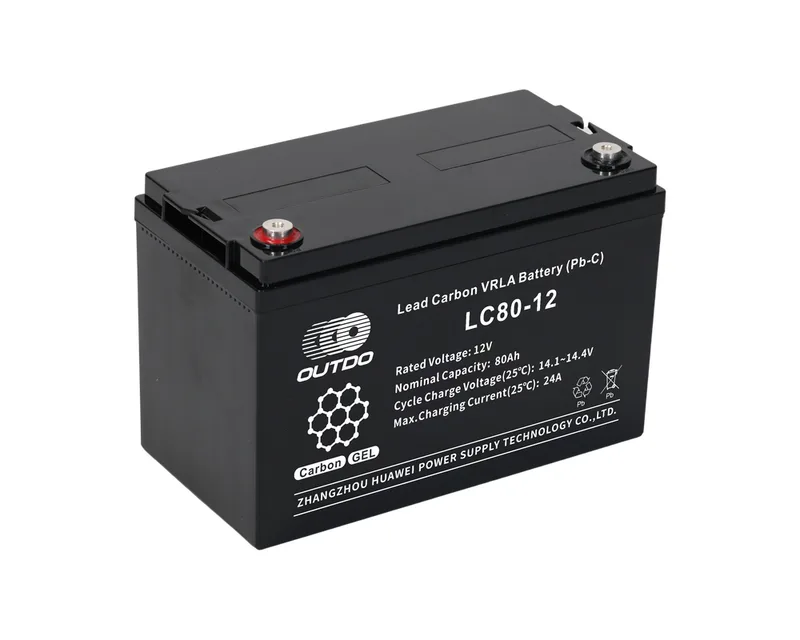

LC80-12128010333*173*216*22233T3CPDF

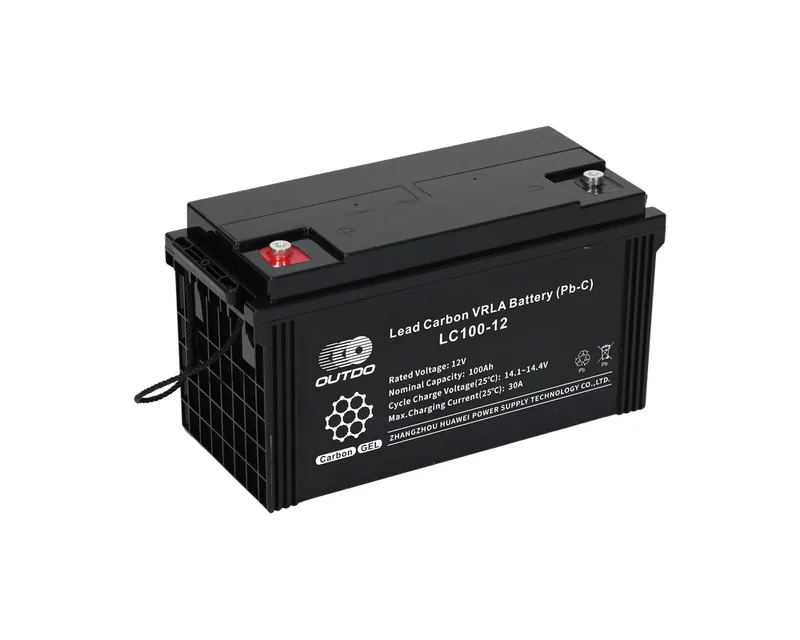

LC100-121210010407*177*224*22439.5T2CPDF

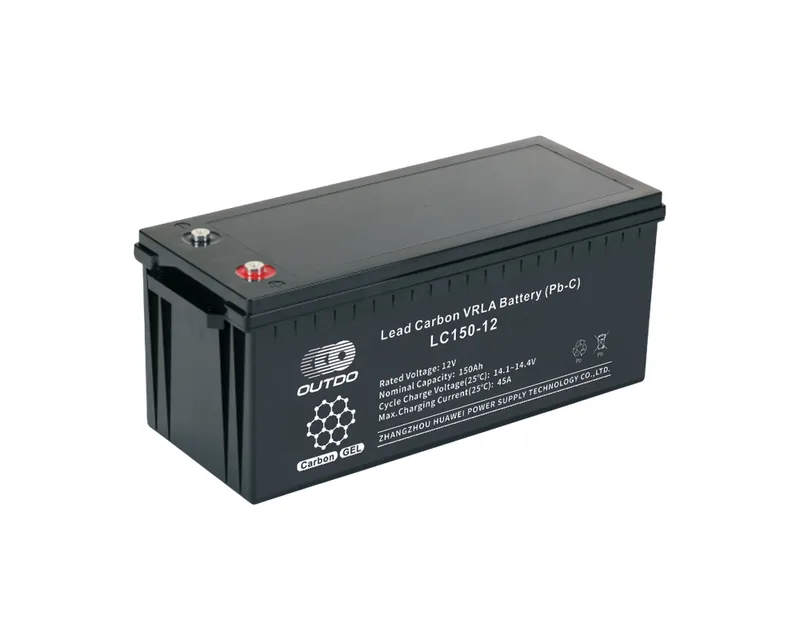

LC150-121215010532*209*215*22060.3T2EPDF

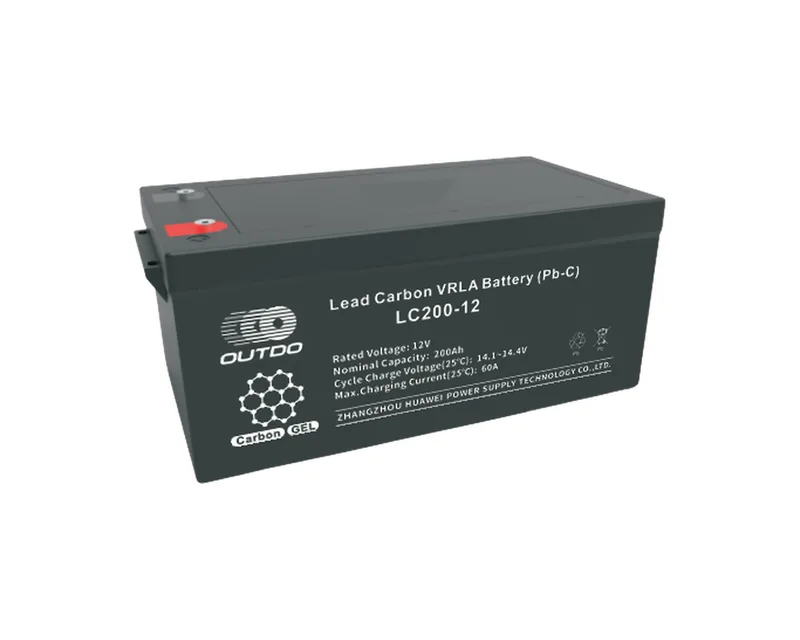

LC200-121220010520*269*220*22575.4T2EPDF
