Intelligent Battery
Power Supply Battery
This intelligent battery is with digital display, real-time monitoring of the battery's voltage, capacity (SOC), temperature, and charge/discharge status, to allow users to take better care of their batteries. The LCD screen shows the battery's capacity clearly with battery icon. The battery has all the benefits of a standard gel battery but with additional smart monitoring features.


Intelligent Battery Safe Use Precautions
I. Safety Precautions
- Do not disassemble, repair, or modify the system. It contains sulfuric acid and lead, which can be harmful to people and the environment.
- Do not short-circuit the positive and negative terminals of the system or battery pack, as this may cause electric shock, fire, or equipment failure.
- Ensure that all terminal bolts are securely tightened. Loose connections may lead to overheating and increase the risk of fire.
- Keep the system away from oil, water, and other chemicals, as exposure may result in electric shock, fire, or malfunction.
- Always disconnect the main power supply before installation or wiring to avoid the risk of electric shock.
- Do not connect the system to a power source exceeding the rated voltage, as this may cause fire or damage to the system.
- Do not use the system directly as an AC power source. If AC output is required, use appropriate equipment such as a UPS.
- Keep the system away from flames, heat sources, and high-temperature environments to prevent the risk of explosion.
- During charging, small amounts of gas may be generated. Ensure proper ventilation and use the system in a well-ventilated area.
II. Intelligent Battery Precautions for Use
- Do not store or use the system under the following conditions, as this may cause malfunction, acid leakage, or electrical hazards:
- Outdoor environments exposed to rain or direct sunlight
- Areas with heavy fog or freezing conditions
- Locations with corrosive gases
- Highly humid or dusty environments
- Areas subject to strong vibrations or mechanical shock

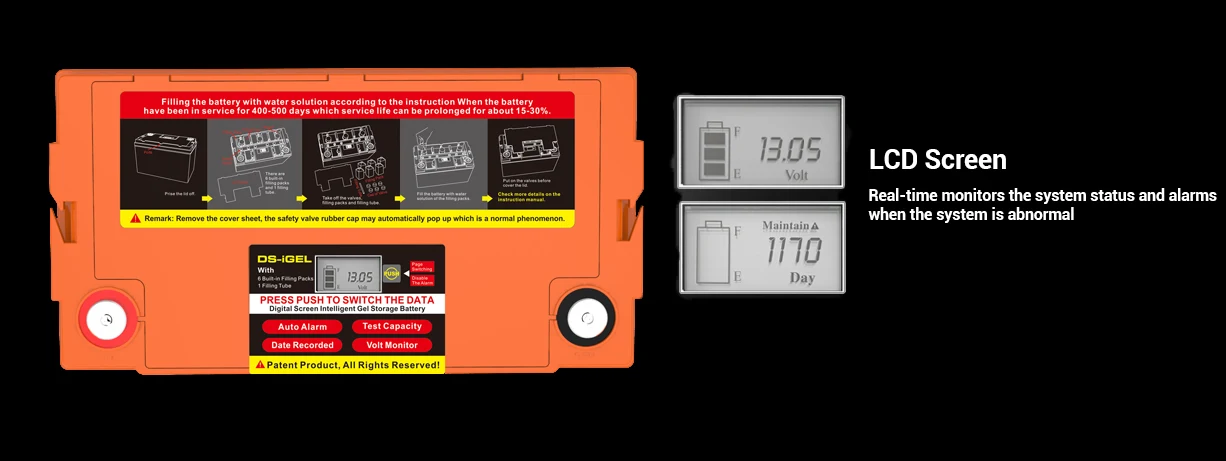

- LCD Screen Maintenance
- Do not place heavy objects on or apply pressure to the control panel
- Keep the screen and interfaces clean and dry at all times
- Regularly check the system display for proper operation
- Pay attention to any buzzer alarms
- Respond promptly to any system alarms
| Type | Model | Voltage (V) | Capacity (Ah) | Hour Rate (HR) | Dimension±2 (mm) | Weight±3% (KG) | Terminal | Polarity | Datasheet |
|---|---|---|---|---|---|---|---|---|---|
| GEL Type | OT33-12(GEL)/DS-A | 12 | 33 | 20 | 195*132*168*168 | 10.6 | T1 | C | |

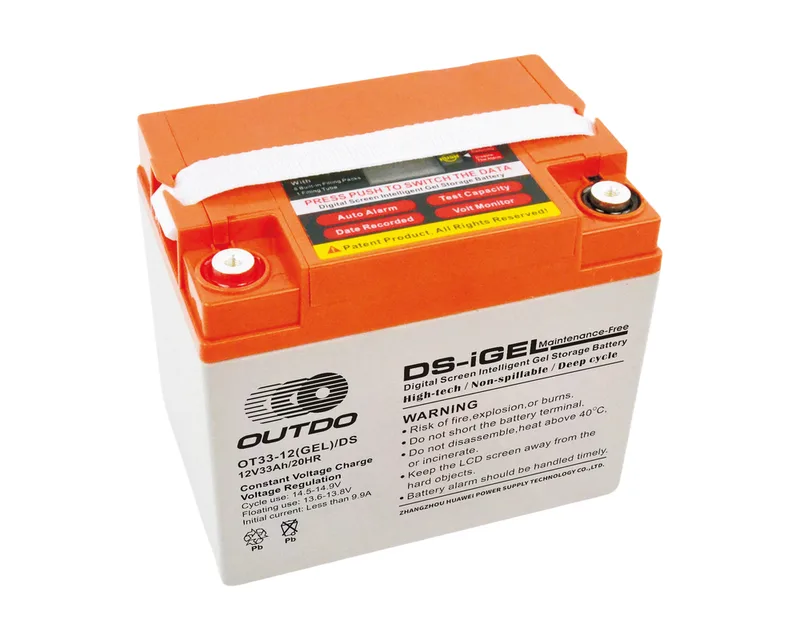

| GEL Type | OT33-12(GEL)/DS | 12 | 33 | 20 | 195*132*168*168 | 9.9 | T1 | C | |
| GEL Type | OT40-12(GEL)/DS | 12 | 40 | 20 | 196*166*173*173 | 12.6 | T1 | D | |

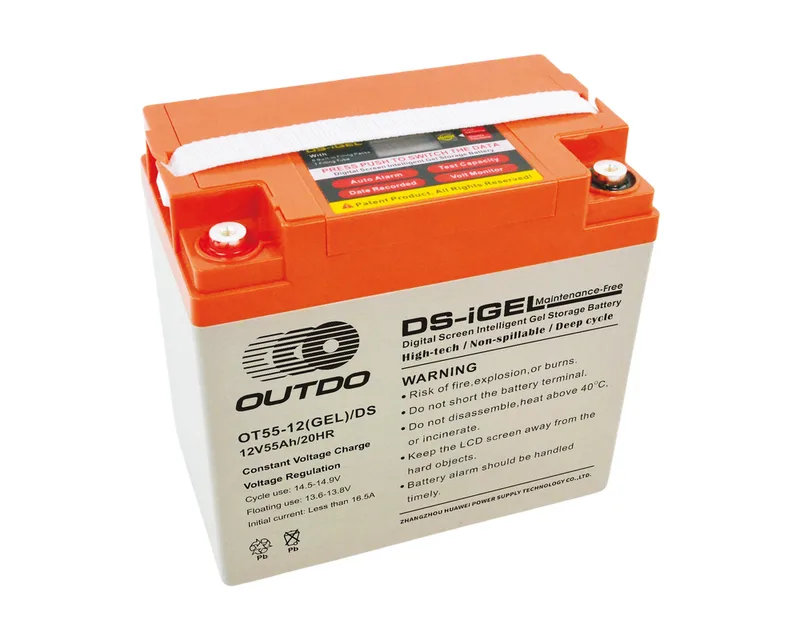

| GEL Type | OT55-12(GEL)/DS | 12 | 55 | 20 | 228*137*214*214 | 16.7 | T1 | C | |
| GEL Type | OT65-12(GEL)/DS | 12 | 65 | 10 | 350*167*173*173 | 20.9 | T3 | D | |

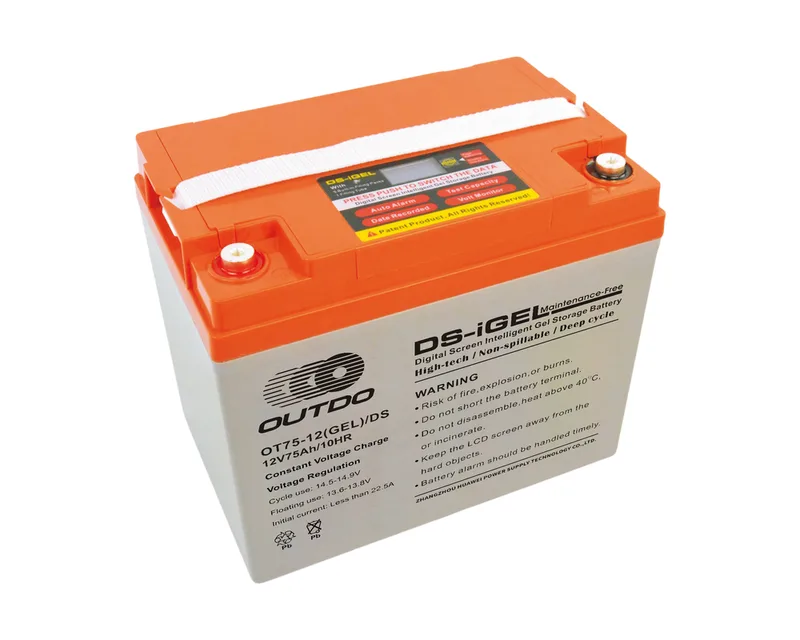

| GEL Type | OT75-12(GEL)/DS | 12 | 75 | 10 | 260*168*219*219 | 22.9 | T1 | C | |

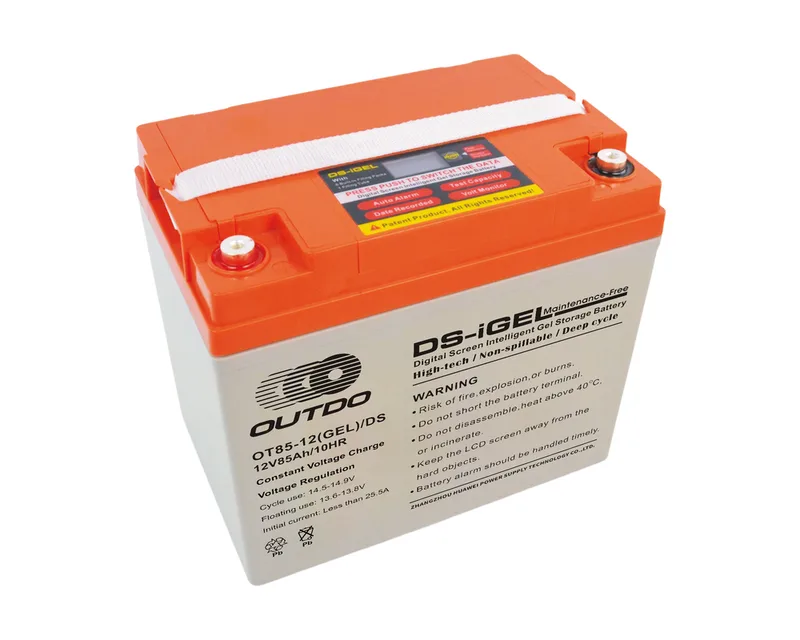

| GEL Type | OT85-12(GEL)/DS | 12 | 85 | 10 | 260*168*219*219 | 25.4 | T1 | C | |

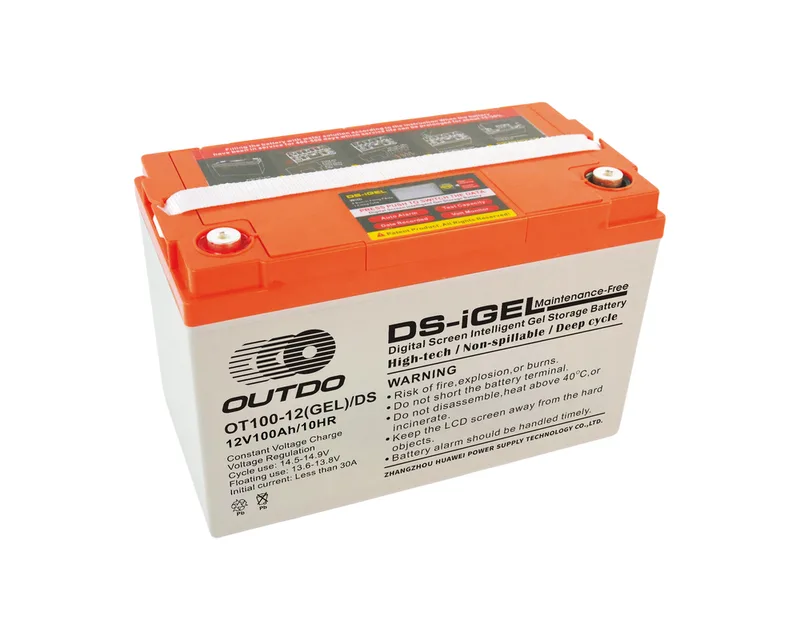

| GEL Type | OT100-12(GEL)/DS | 12 | 100 | 10 | 333*173*216*222 | 30.9 | T3 | C | |

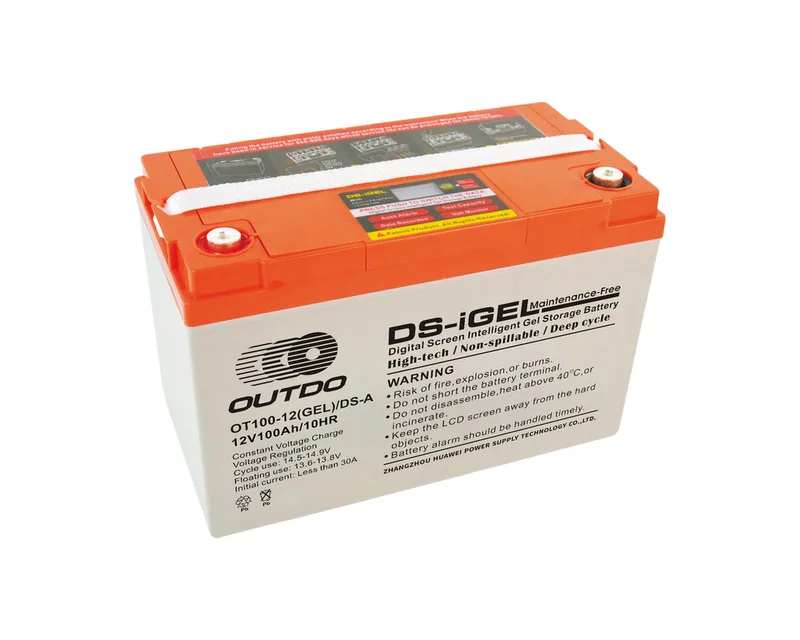

| GEL Type | OT100-12(GEL)/DS-A | 12 | 100 | 10 | 333*173*216*222 | 31.5 | T3 | C | |

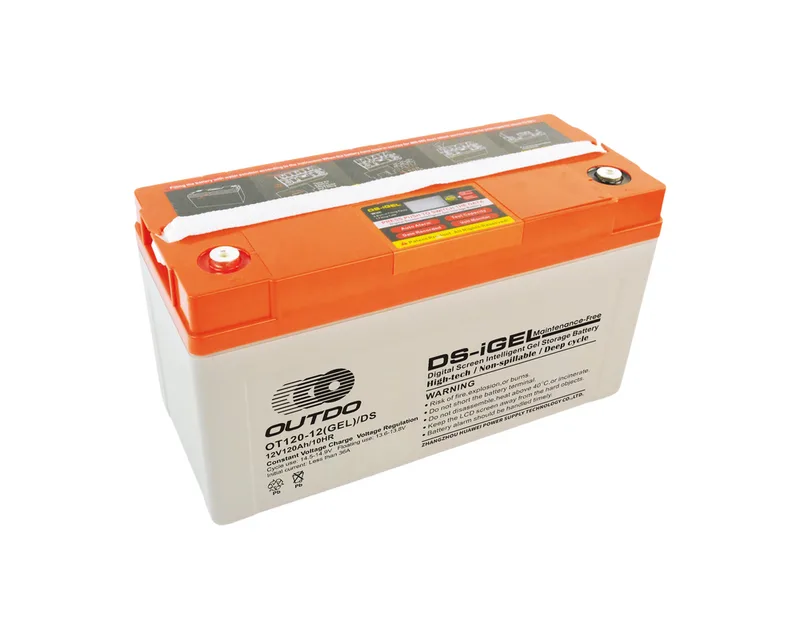

| GEL Type | OT120-12(GEL)/DS | 12 | 120 | 10 | 406*172*223*228 | 36.8 | T2 | C | |

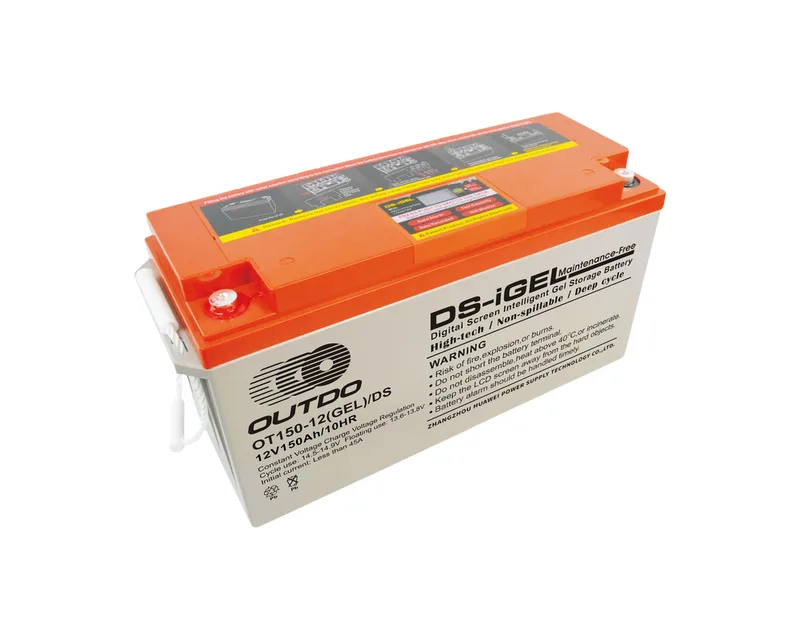

| GEL Type | OT150-12(GEL)/DS | 12 | 150 | 10 | 483*170*241*241 | 43.2 | T3 | C | |
| GEL Type | OT200-12(GEL)/DS | 12 | 200 | 10 | 522*239*217*222 | 60.9 | T3 | E | |
| GEL Type | OT250-12(GEL)/DS | 12 | 250 | 10 | 520*269*222*225 | 73.1 | T2 | E | |

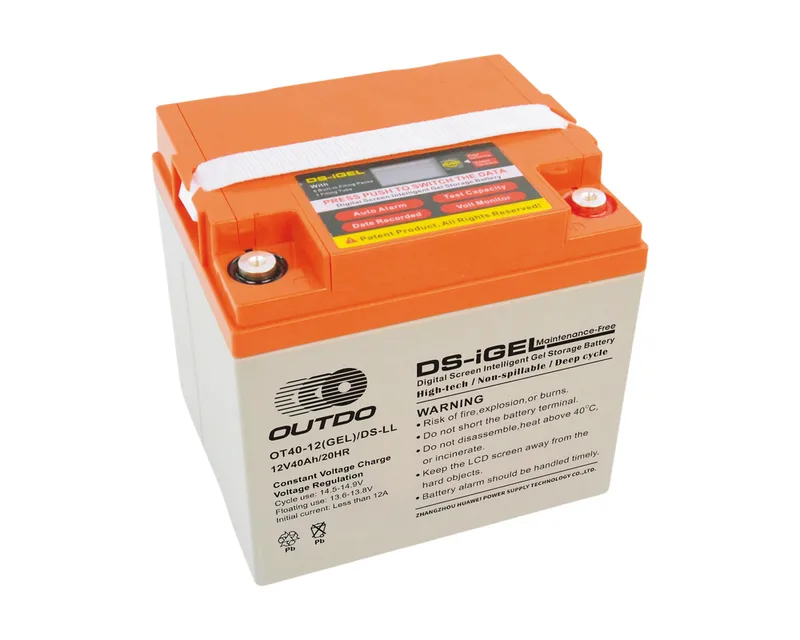

| GEL Type | OT40-12(GEL)/DS/LL | 12 | 40 | 20 | 196*166*173*173 | 13.9 | T1 | D | |

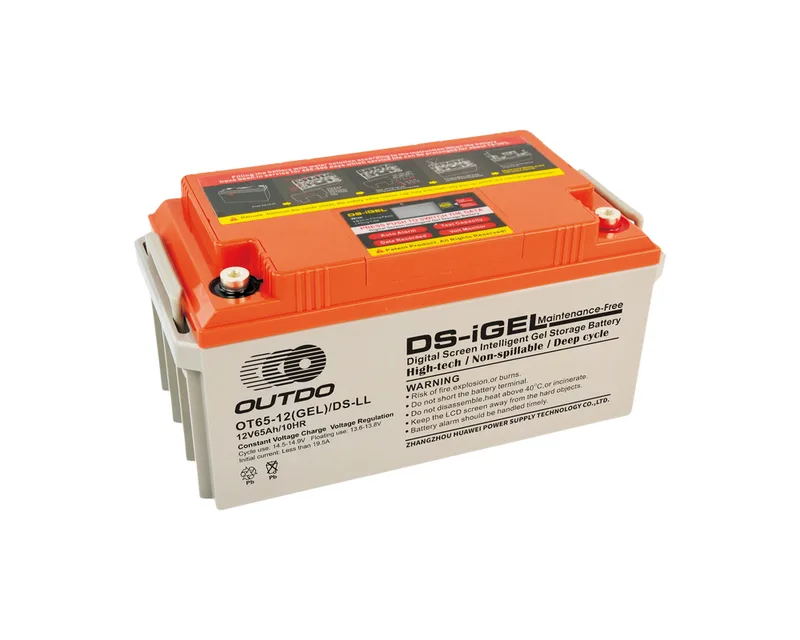

| GEL Type | OT65-12(GEL)/DS/LL | 12 | 65 | 10 | 350*167*173*173 | 23.3 | T3 | D | |
| GEL Type | OT100-12(GEL)/DS/LL | 12 | 100 | 10 | 333*173*216*222 | 32.4 | T3 | C | |
| GEL Type | OT120-12(GEL)/DS/LL | 12 | 120 | 10 | 406*172*223*228 | 38.4 | T2 | C | |
| GEL Type | OT150-12(GEL)/DS/LL | 12 | 150 | 10 | 483*170*241*241 | 47.8 | T3 | C | |

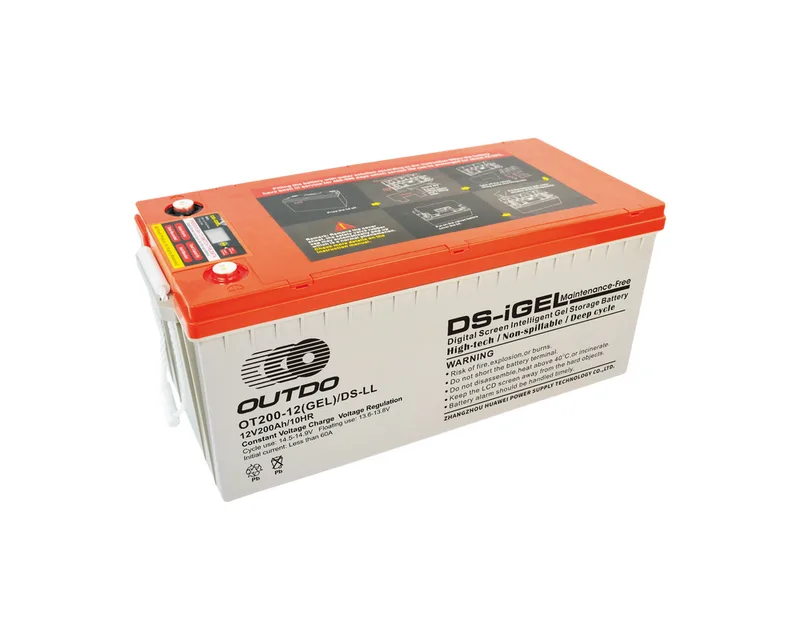

| GEL Type | OT200-12(GEL)//DS/LL | 12 | 200 | 10 | 522*239*217*222 | 63.6 | T3 | E | |
| GEL Energy Storage Type | OT33-12(GEL)/DS/CN-A | 12 | 33 | 20 | 195*132*168*168 | 10.6 | T1 | C | |
| GEL Energy Storage Type | OT33-12(GEL)/DS/CN | 12 | 33 | 20 | 195*132*168*168 | 9.9 | T1 | C | |
| GEL Energy Storage Type | OT38-12(GEL)/DS/CN | 12 | 38 | 10 | 196*166*173*173 | 12.6 | T1 | D | |
| GEL Energy Storage Type | OT55-12(GEL)/DS/CN | 12 | 55 | 10 | 228*137*214*214 | 16.7 | T1 | C | |
| GEL Energy Storage Type | OT65-12(GEL)/DS/CN | 12 | 65 | 10 | 350*167*173*173 | 20.9 | T3 | D | |
| GEL Energy Storage Type | OT75-12(GEL)/DS/CN | 12 | 75 | 10 | 260*168*219*219 | 22.9 | T1 | C | |
| GEL Energy Storage Type | OT85-12(GEL)/DS/CN | 12 | 85 | 10 | 260*168*219*219 | 25.4 | T1 | C | |
| GEL Energy Storage Type | OT100-12(GEL)/DS/CN | 12 | 100 | 10 | 333*173*216*222 | 30.9 | T3 | C | |
| GEL Energy Storage Type | OT100-12(GEL)/DS/CN-A | 12 | 100 | 10 | 333*173*216*222 | 31.5 | T3 | C | |
| GEL Energy Storage Type | OT120-12(GEL)/DS/CN | 12 | 120 | 10 | 406*172*223*228 | 36.8 | T2 | C | |

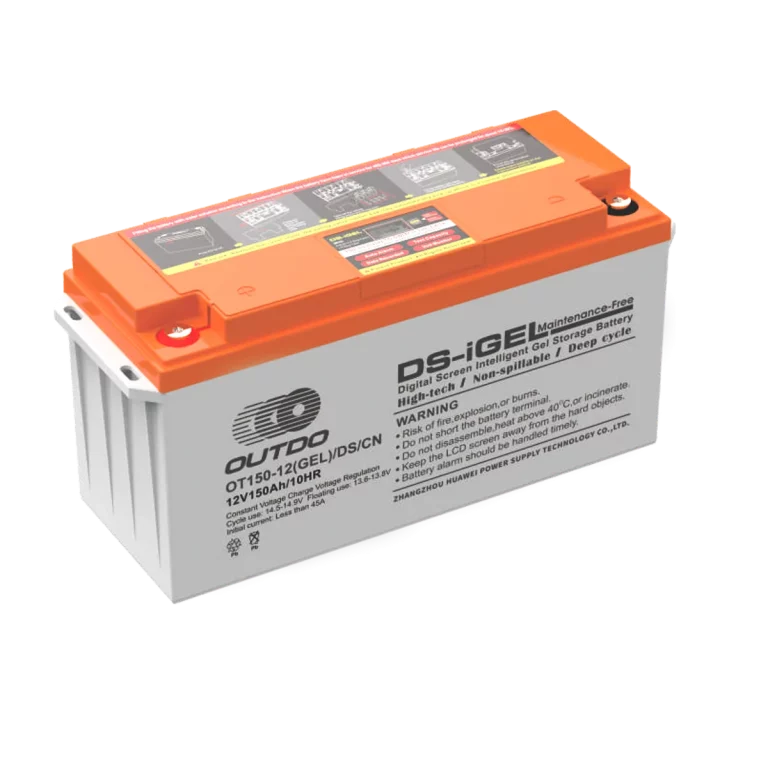

| GEL Energy Storage Type | OT150-12(GEL)/DS/CN | 12 | 150 | 10 | 484*170*241*241 | 43.2 | T3 | C | |
| GEL Energy Storage Type | OT150-12(GEL)/DS/CN-A | 12 | 150 | 10 | 484*170*241*241 | 44.7 | T3 | C | |
| GEL Energy Storage Type | OT200-12(GEL)/DS/CN | 12 | 200 | 10 | 522*239*217*222 | 60.9 | T3 | E | |
| GEL Energy Storage Type | OT200-12(GEL)/DS/CN-A | 12 | 200 | 10 | 522*239*217*222 | 63.7 | T3 | E | |
| GEL Energy Storage Type | OT250-12(GEL)/DS/CN | 12 | 250 | 10 | 520*269*222*225 | 73.1 | T2 | E | |
| GEL Energy Storage Deep Cycle Type | OT33-12(GEL)/DS/CD-A | 12 | 33 | 20 | 195*132*168*168 | 10.6 | T1 | C | |

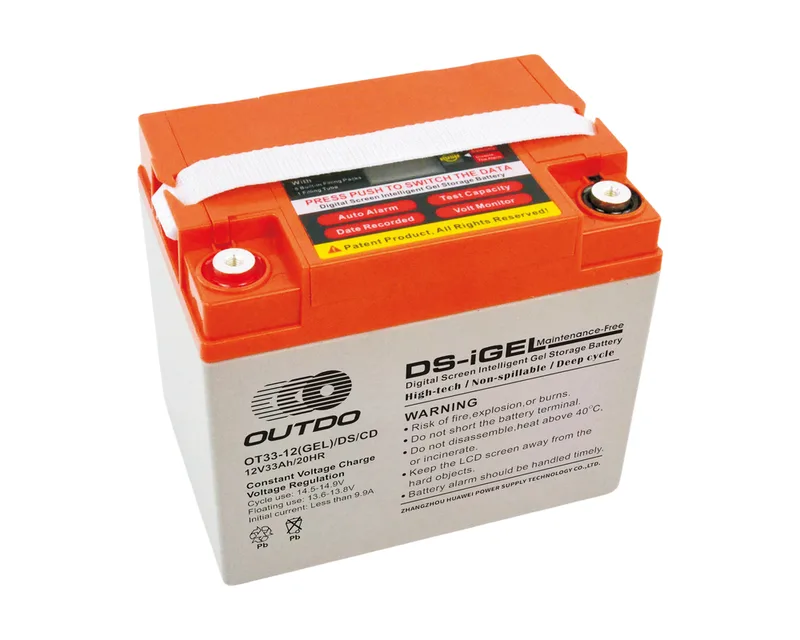

| GEL Energy Storage Deep Cycle Type | OT33-12(GEL)/DS/CD | 12 | 33 | 20 | 195*132*168*168 | 9.9 | T1 | C | |

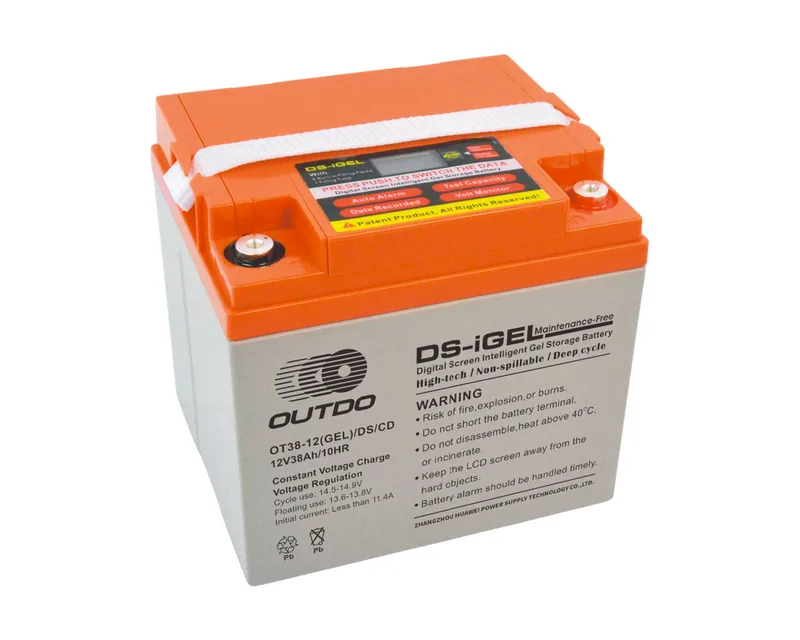

| GEL Energy Storage Deep Cycle Type | OT38-12(GEL)/DS/CD | 12 | 38 | 10 | 196*166*173*173 | 12.6 | T1 | D | |

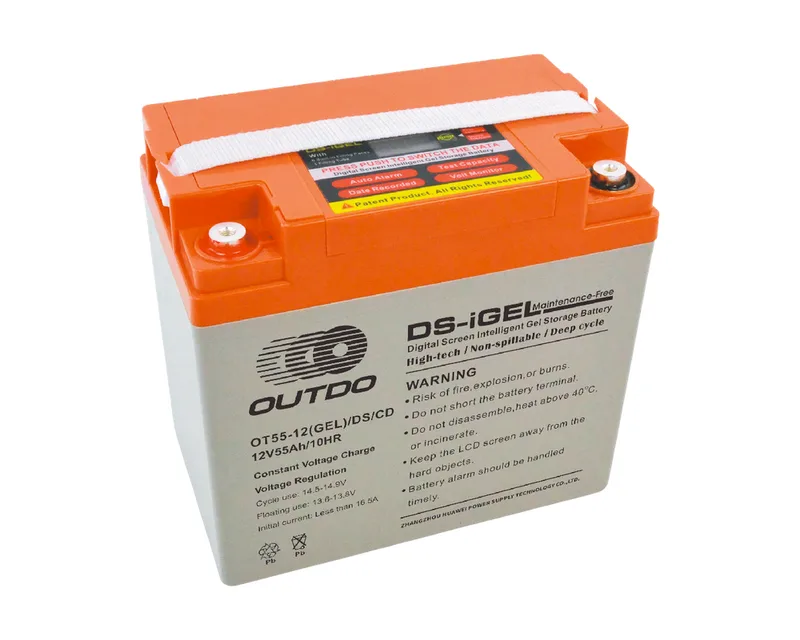

| GEL Energy Storage Deep Cycle Type | OT55-12(GEL)/DS/CD | 12 | 55 | 10 | 228*137*214*214 | 16.7 | T1 | C | |

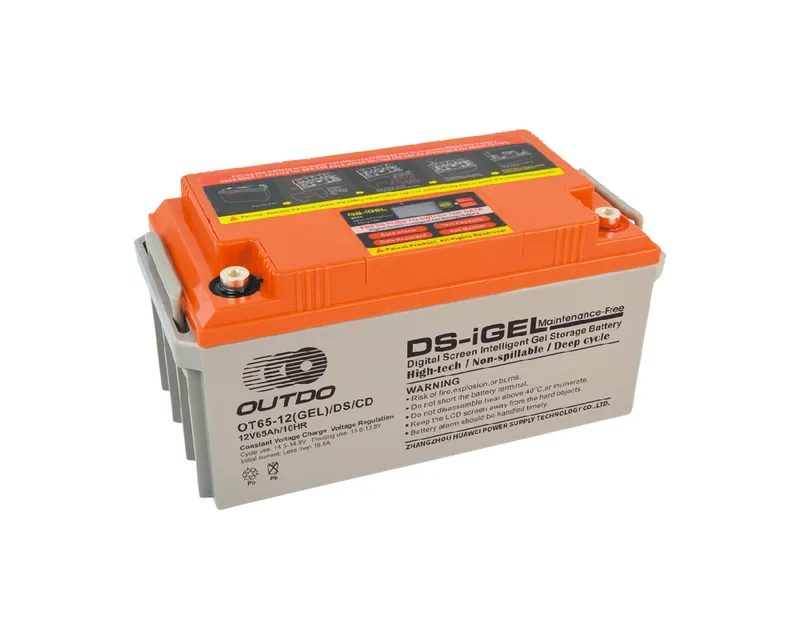

| GEL Energy Storage Deep Cycle Type | OT65-12(GEL)/DS/CD | 12 | 65 | 10 | 350*167*173*173 | 20.9 | T3 | D | |

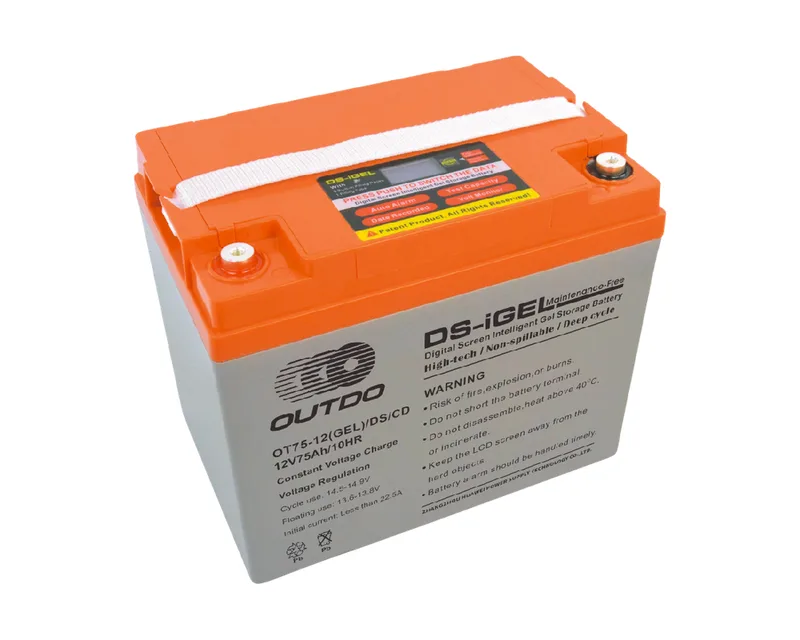

| GEL Energy Storage Deep Cycle Type | OT75-12(GEL)/DS/CD | 12 | 75 | 10 | 260*168*219*219 | 22.9 | T1 | C | |

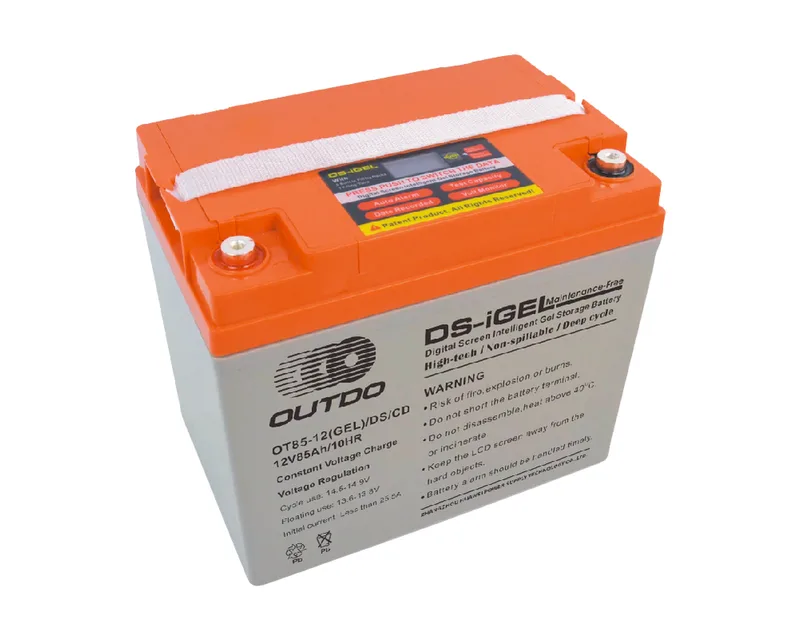

| GEL Energy Storage Deep Cycle Type | OT85-12(GEL)/DS/CD | 12 | 85 | 10 | 260*168*219*219 | 25.4 | T1 | C | |
| GEL Energy Storage Deep Cycle Type | OT100-12(GEL)/DS/CD | 12 | 100 | 10 | 333*173*216*222 | 30.9 | T3 | C | |
| GEL Energy Storage Deep Cycle Type | OT100-12(GEL)/DS/CD-A | 12 | 100 | 10 | 333*173*216*222 | 31.5 | T3 | C | |

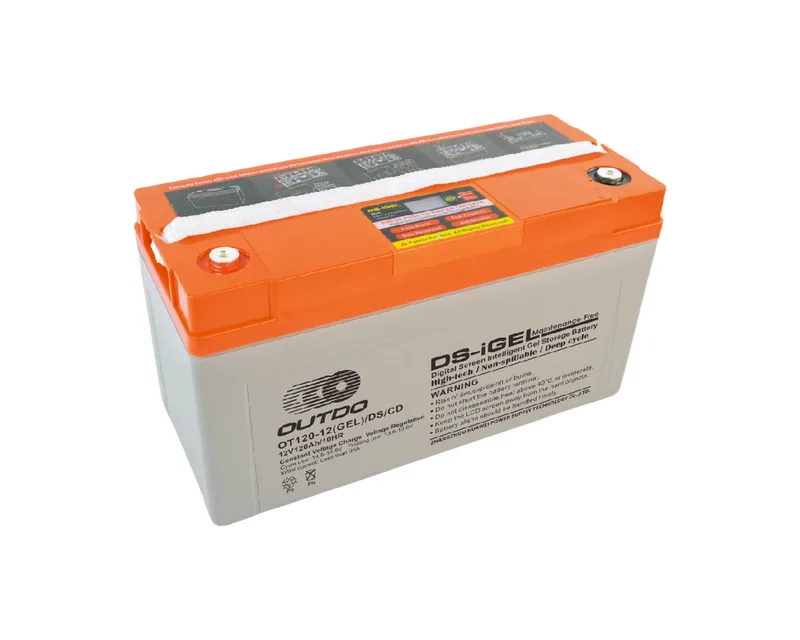

| GEL Energy Storage Deep Cycle Type | OT120-12(GEL)/DS/CD | 12 | 120 | 10 | 406*172*223*228 | 36.8 | T2 | C | |
| GEL Energy Storage Deep Cycle Type | OT150-12(GEL)/DS/CD | 12 | 150 | 10 | 484*170*241*241 | 43.2 | T3 | C | |

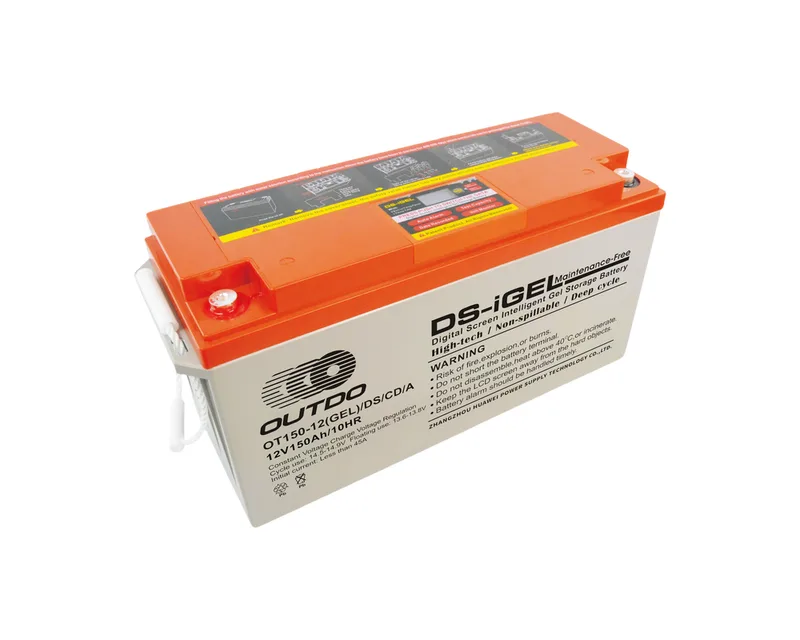

| GEL Energy Storage Deep Cycle Type | OT150-12(GEL)/DS/CD-A | 12 | 150 | 10 | 484*170*241*241 | 44.7 | T3 | C | |

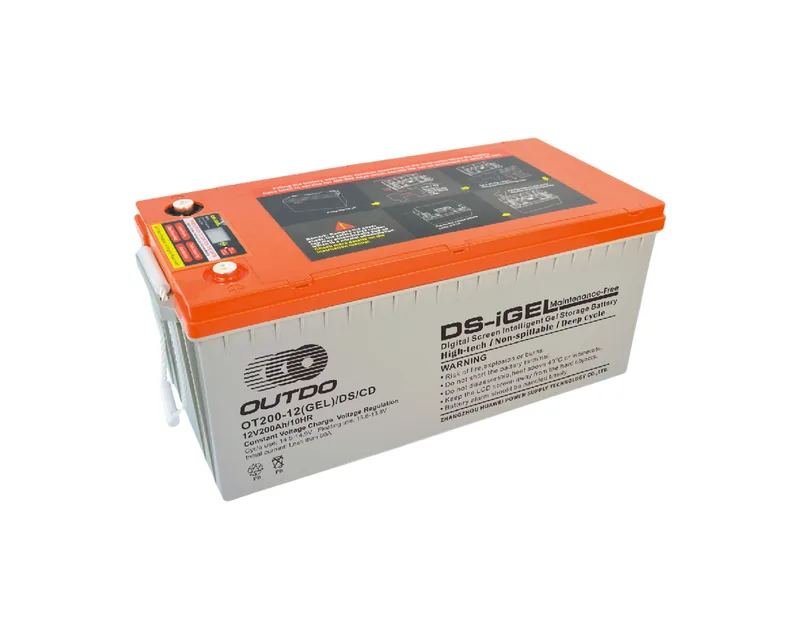

| GEL Energy Storage Deep Cycle Type | OT200-12(GEL)/DS/CD | 12 | 200 | 10 | 522*239*217*222 | 60.9 | T3 | E | |

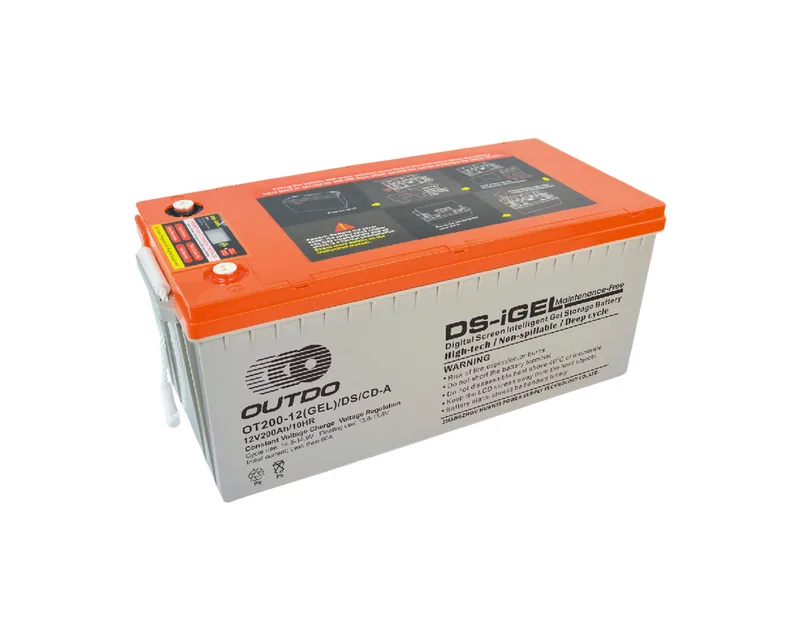

| GEL Energy Storage Deep Cycle Type | OT200-12(GEL)/DS/CD-A | 12 | 200 | 10 | 522*239*217*222 | 63.7 | T3 | E | |

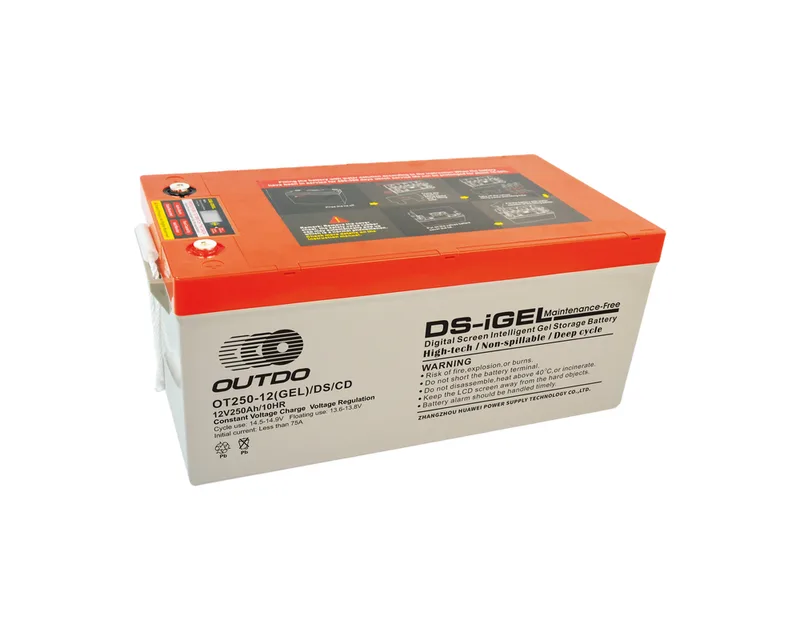

| GEL Energy Storage Deep Cycle Type | OT250-12(GEL)/DS/CD | 12 | 250 | 10 | 520*269*222*225 | 73.1 | T2 | E | |
| GEL Energy Storage Long Life Type | OT40-12(GEL)/DS/CL | 12 | 40 | 10 | 196*166*173*173 | 13.9 | T1 | D | |
| GEL Energy Storage Long Life Type | OT65-12(GEL)/DS/CL | 12 | 65 | 10 | 350*167*173*173 | 23.3 | T3 | D | |
| GEL Energy Storage Long Life Type | OT100-12(GEL)/DS/CL | 12 | 100 | 10 | 333*173*216*222 | 32.4 | T3 | C | |
| GEL Energy Storage Long Life Type | OT120-12(GEL)/DS/CL | 12 | 120 | 10 | 406*172*223*228 | 38.4 | T2 | C | |

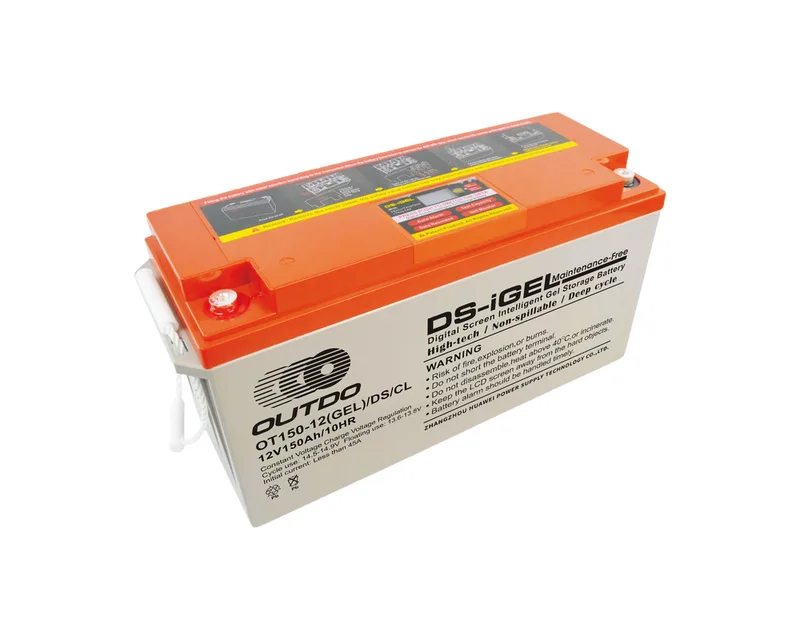

| GEL Energy Storage Long Life Type | OT150-12(GEL)/DS/CL | 12 | 150 | 10 | 484*170*241*241 | 47.8 | T3 | C | |
| GEL Energy Storage Long Life Type | OT200-12(GEL)/DS/CL | 12 | 200 | 10 | 522*239*217*222 | 63.6 | T3 | E |
