Wall Mounted

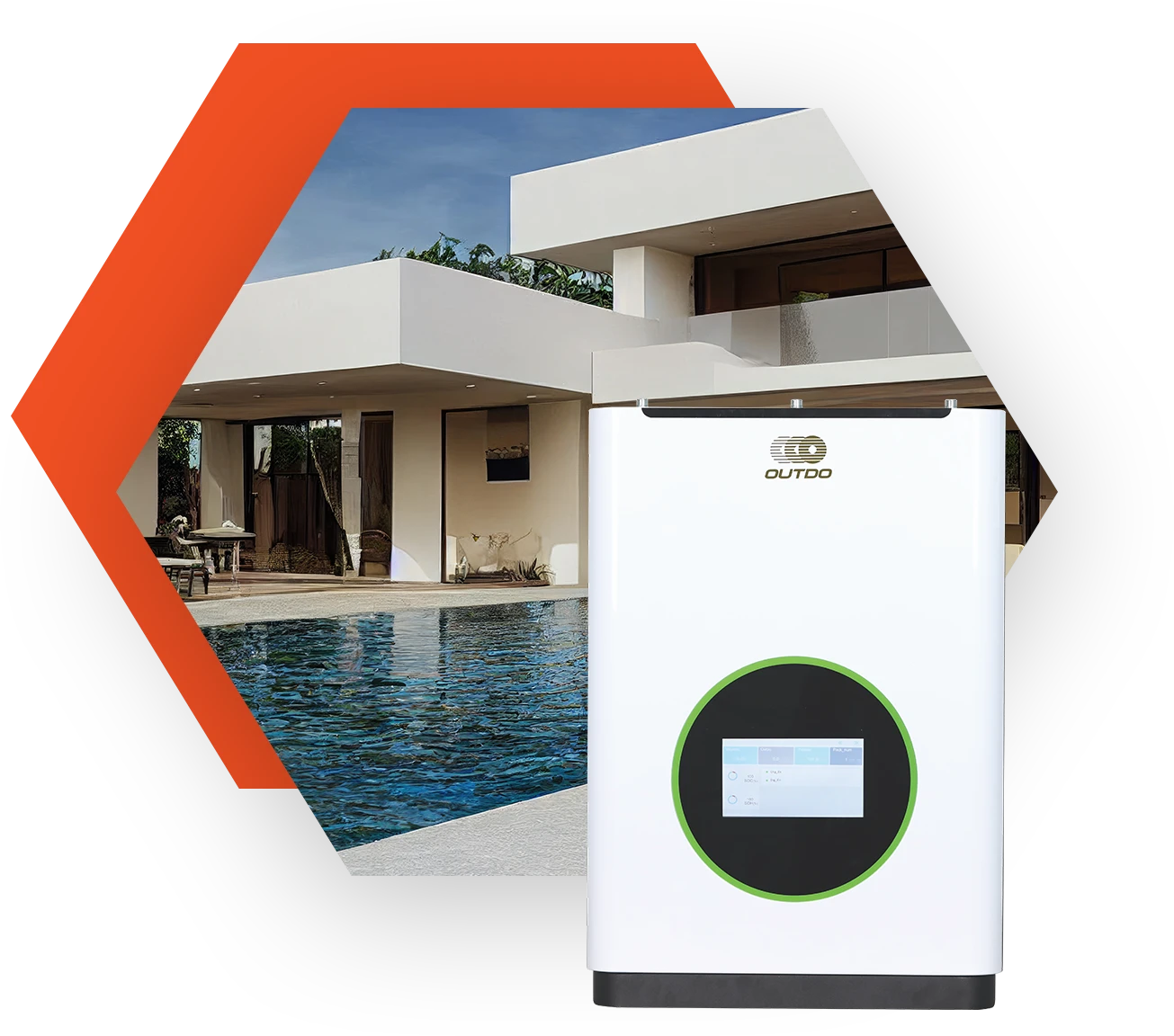

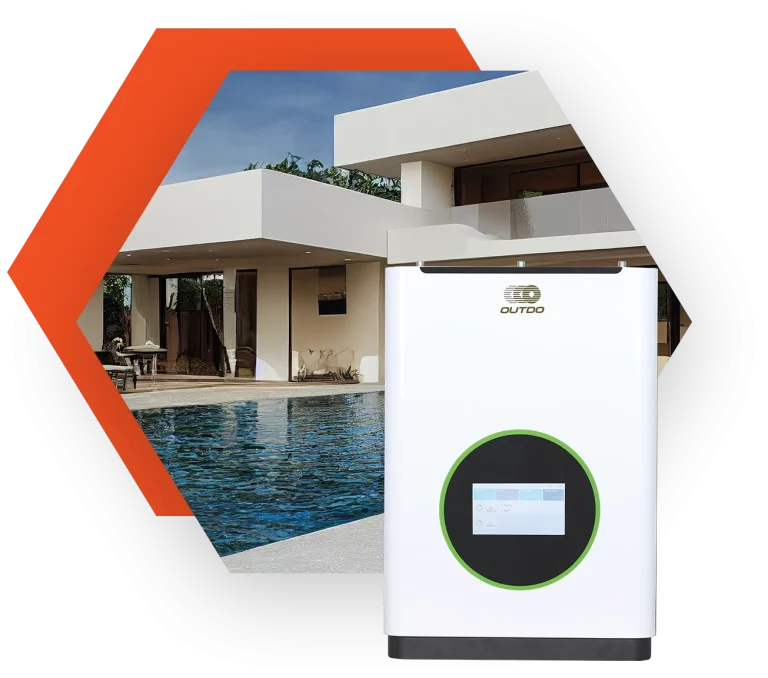

Lithium Ion Wall Mounted Energy Storage Battery
The lithium iron phosphate series batteries are customized with the BMS communication protocol, which is safe and reliable, and supports the corresponding inverter system. Compared with similar products, it has the smallest volume to save space and it is easy to transport. The appearance and color can be customized.

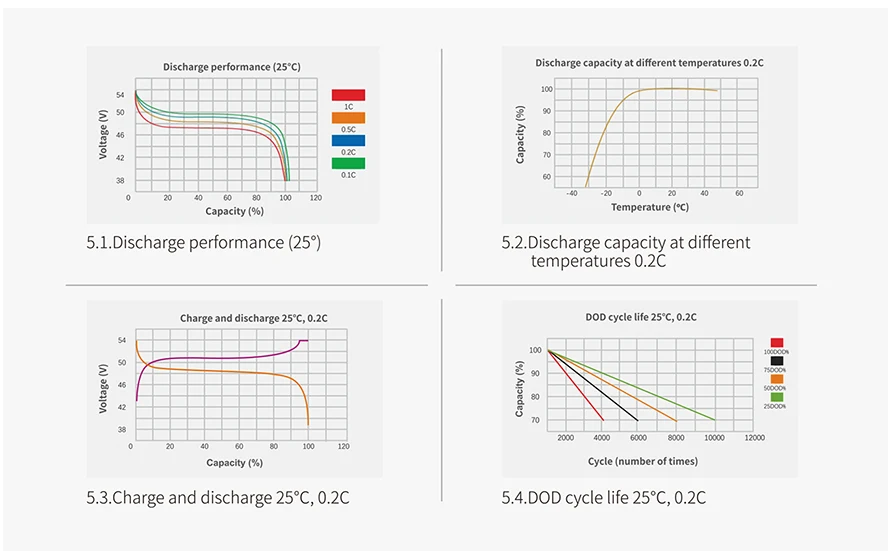

Wall Mounted Details
APPLICATION
- •Uninterrupted energy
- •Home backup
- •Hospitals
- •Banks
- •Small businesses
- •Small base stations
- •Backup power systems
- •Data processing centers
| Series | Model | Standard Communication Interface | Voltage (V) | Parallel Connection | Standard Capacity (Ah) | Standard Power (Wh) | Max Charge Current (A) | Standard Charge Current (A) | Standard Discharge Current (A) | Max Discharge Current (A) | BMS | Dimensions±2 (mm) | Weight±3% (KG) | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48V | BGLFP100-48 | 485 232 CAN | 48 | 15S1P | 100 | 4800 | 20 | 90 | 20 | 100 | 100 | 735*460*231*T241 | 56 | |
| 48V | BGLFP150-48 | 485 232 CAN | 48 | 15S1P | 150 | 7200 | 30 | 90 | 30 | 100 | 100 | 735*460*231*T241 | 78 | |
| 48V | BGLFP200-48 | 485 232 CAN | 48 | 15S1P | 200 | 9600 | 40 | 90 | 40 | 100 | 100 | 735*460*261*T271 | 85 | |
| 48V | BGLFP230-48 | 485 232 CAN | 48 | 15S1P | 230 | 11040 | 46 | 90 | 46 | 100 | 100 | 735*460*261*T271 | 92 | |
| 51.2V | BGLFP100-51.2 | 485 232 CAN | 51.2 | 16S1P | 100 | 5120 | 20 | 90 | 20 | 100 | 100 | 735*460*231*T241 | 58 | |
| 51.2V | BGLFP150-51.2 | 485 232 CAN | 51.2 | 16S1P | 150 | 7680 | 30 | 90 | 30 | 100 | 100 | 735*460*231*T241 | 82 | |
| 51.2V | BGLFP200-51.2 | 485 232 CAN | 51.2 | 16S1P | 200 | 10240 | 40 | 90 | 40 | 100 | 100 | 735*460*261*T271 | 92 | |
| 51.2V | BGLFP230-51.2 | 485 232 CAN | 51.2 | 16S1P | 230 | 11776 | 46 | 90 | 46 | 100 | 100 | 735*460*261*T271 | 98 |
